Temperature tests ECC, performed at IKT Laboratory on October, 1st. 2008

This Document describes the tests performed and the Results obtained.



Test Setup

The Environmental Control Monitor (Software to control the ECC-Chamber) installed on the Control PC located in the Technical Components Box.




Actions performed



Time

Action

Observation / Comments



no Action until 9:00h // T=22C, RH=45%, Chiller T=7C

Performance as expected, everything OK

9.00 h

T  decreased from 22C to 21C // new Chiller T = 6C

Swinging in nicely on T, short disturbance on RH, as expected

11.00 h

T  increased from 21C to 22C // new Chiller T = 7C

Swinging in nicely on T, longer bigger disturbance on RH, as expected

13.00 h

T  increased from 22C to 25C // new Chiller T = 9C

Swinging in nicely on T, long heavy disturbance on RH, as expected

15.00 h

T  decreased from 25C to 22C // new Chiller T = 7C

Swinging in nicely on T, short bigger disturbance on RH, as expected



no furter Action until midnight // End of Experiment

Performance as expected, everything OK






Results obtained

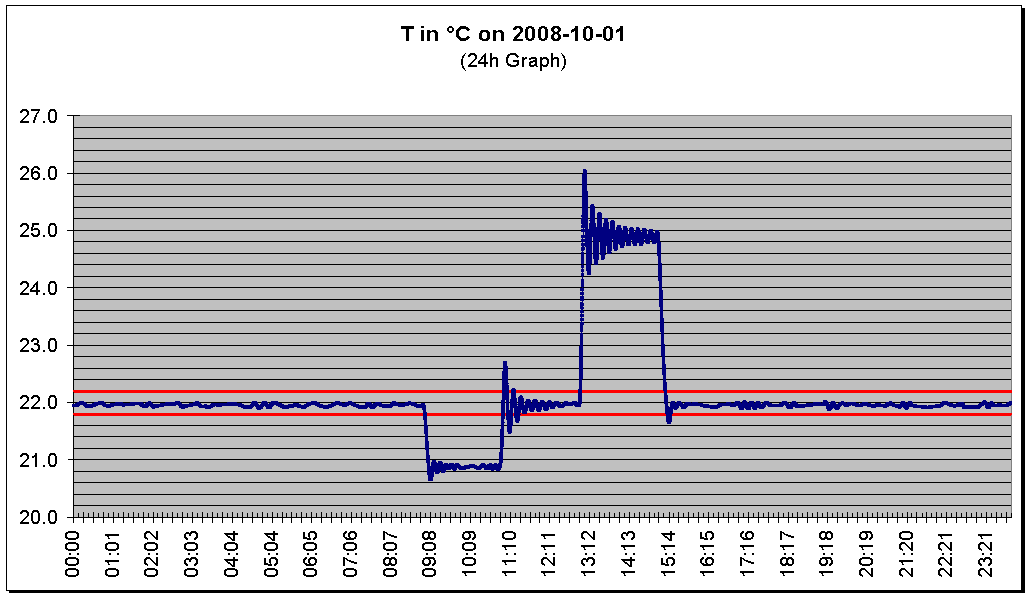

1)               Temperature Chart

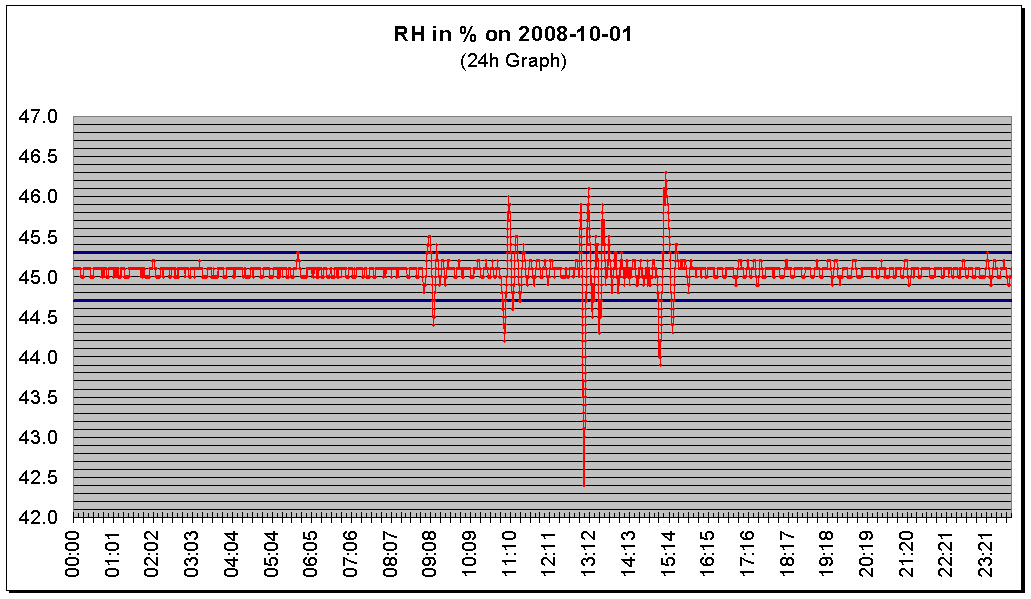

2)               Relative Humidity (RH) Chart

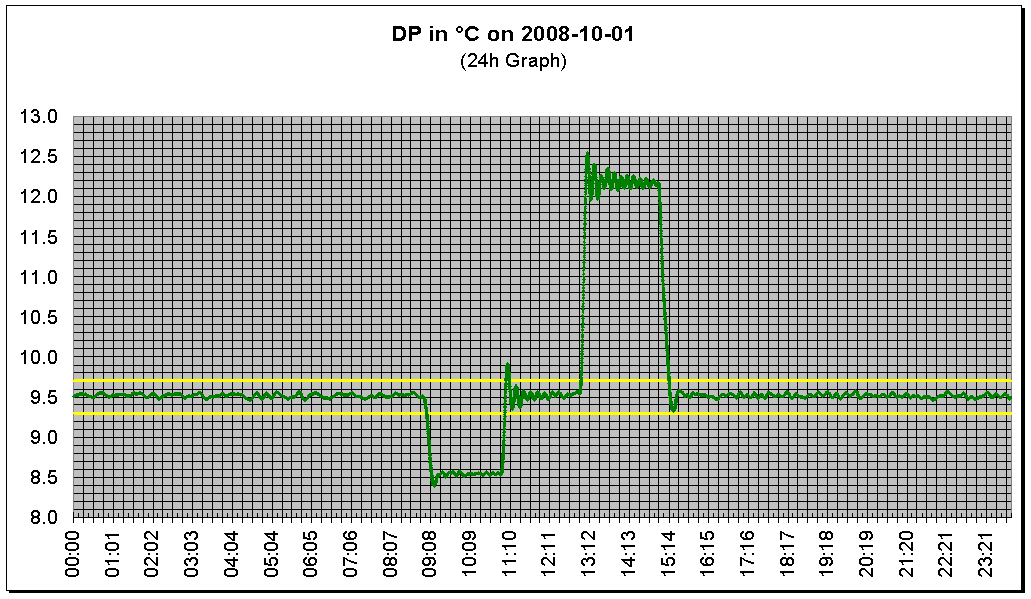

Dew Point (DP) Chart


All these information is Copyright © IKT AG, 2008/ML
--- End of Document ---
